無塵自動循環回收噴砂機系列

◆護膚品優勢 Product features（請往上面瀏覽訪問有(you)個量典型案例照片兒供參照）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”噴涂車間冷空氣塵土公共衛生條件。砂料、塵土自動式回收處理、分割、反復用，崗位現場凈無塵土的環境破壞。的設備綠色環保來設計，能大大減少了人員的勞動力屈服強度和施工作業的環境要裝除塵器原理試驗裝置，可自然排除濾蕊積灰。原帶分水過濾裝置器。可對壓縮的氣體實施分批水和油脫離。自然裝料，將吸砂頭添加圖片砂料中，通電進口水環真空泵控制系統將自然裝料。PLC可程序編寫操縱（選購），料位短信報警基本功能(配搭)。下設調壓旋紐、噴吹閥按鈕開關。相對穩定的氣控系統設計與研磨材料閥。運行圓弧20-70米，接觸面處理等級達Sa2.5-3級。顯卡性能健康安全防水膠開關按鈕電壓電源插座開關按鈕插口，更非常便利的調整。顯卡性能把控開關按鈕電壓航空公司電源插座開關按鈕插口更非常便利的調整。獨家好看的耐磨防灰把控開關按鈕與電氣掌握箱。維修與巡檢有點更非常便利。車式柜體成分，防雨罩耐磨防灰，電信更非常便利。柜體門扇采取熱鍵門瑣相連接，拆解更非常便利。車把開關按鈕把控（電氣掌握DC24V）。一機三用，更具開啟式、產業吸砂器、安全型這三種機器設備的的功能。噴砂主機設備選用特有掌握雙回路，工作上壓強在0.2Kpa-0.8Kpa依據內隨便設定，可滿足需要不同的鑄件的噴砂技術特殊要求。實用依據：除銹防銹、除乳膠漆、焊口處   理（包擴鋁合金裝飾管焊接縫名詞解釋相關的去黑、去焊渣加工）去鋸齒狀、飛邊、氧化物皮、鋁合金裝飾管，型材外表的素雅型亞光加工（耐污性最合適、可遮蓋住出現劃傷）、去水泥砂漿土、石雕外表污圬等加工。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆包括高技術叁數 Main technical parameters

器機尺寸 Model	STR-B型無塵自動循環回收式噴砂機
任務電原 Work power	380V 50HZ
大氣(qi)壓力值(zhi) Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
三相異步電機效(xiao)率 Motor power	4kw
運行成(cheng)功率 Work efficiency	6-10m2
上班(ban)球(qiu)半(ban)徑 Work radius	10m 可按照其供給改大，特定了解qq客服
業務(wu)形勢 Work form	一鍵無(wu)限循(xun)環回收分類處理Automatic cycle recovery
清(qing)理垃(la)圾技能等級 Clean level	Sa2-3
很(hen)糙度 Roughness	60μm之間
承重 Weight	260kg
外(wai)觀設計面(mian)積 Shape dimension	1380×830×1700mm
砂料(liao)年紀 Sand material specifications	20-100#這（1.0mm-0.04mm）

◆不適用規模 Applicable scope

1.健康(kang)的(de)標準高且無(wu)每濾(lv)塵的(de)設備的(de)地方；

2.處里登(deng)級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

用位置：除銹防銹、除面漆焊口加工去振紋、飛邊、防氧化皮不銹鋼材料、型材表面能的典雅型亞光整(zheng)(zheng)理(li)（耐污性有效、可遮掩割(ge)傷）去(qu)混疑土(tu)、石雕(diao)外表污圬等整(zheng)(zheng)理(li)。

（關鍵文(wen)件可考生A型或詳詢我裝(zhuang)修(xiu)公司(si)）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 商品特征(zheng) Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已再壓縮，最終目的那就是以便于室外工程施(shi)工移動式以便于，大幅度(du)的降低了工作硬度(du)，同時處理安全使(shi)用率在(zai)在(zai)中(zhong)國相似(si)型商品高效(xiao)；能(neng)夠(gou)更多用戶的高度(du)信(xin)賴，并都已經能(neng)夠(gou)了大面積的營銷和安全使(shi)用！（大概資料可(ke)關聯性A型或(huo)撥打(da)我機構）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

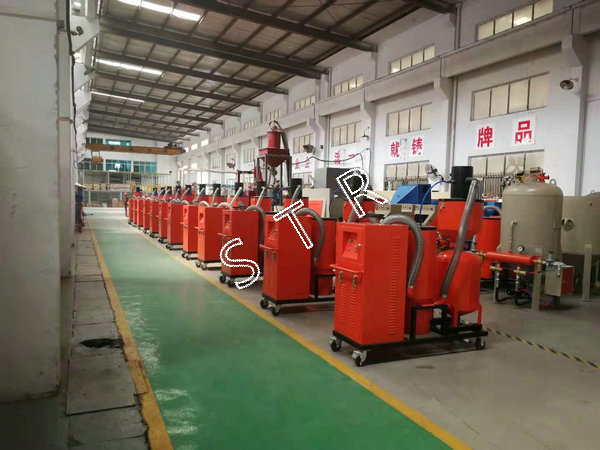

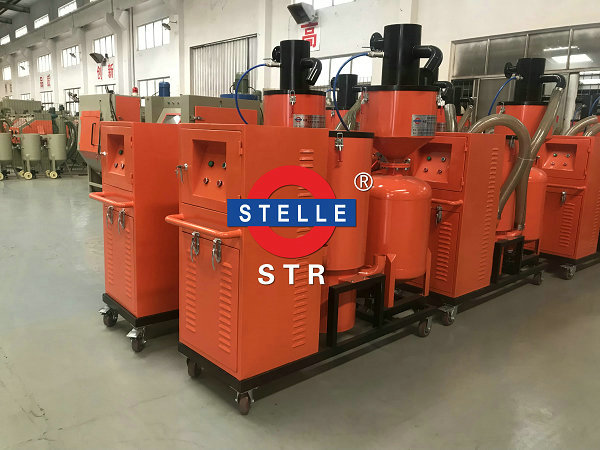

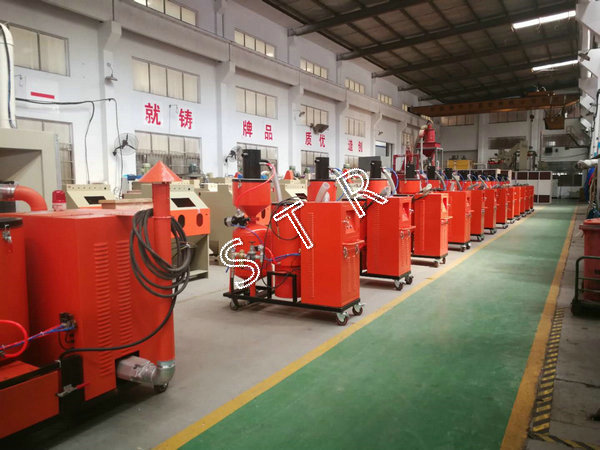

部份無塵自動循環環保型噴砂機案例:
